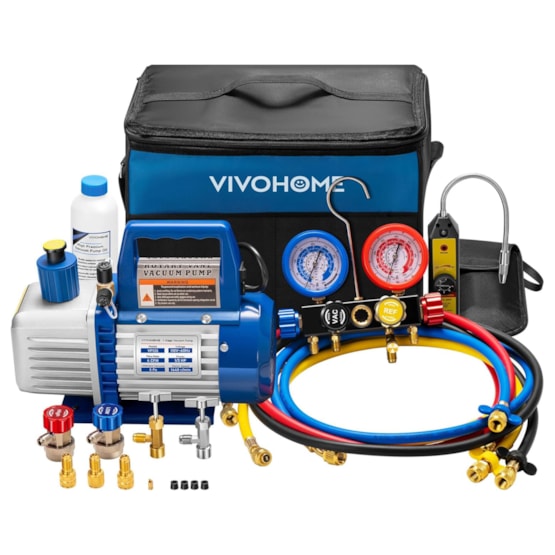

VIVOHOME Upgraded 4CFM 1/3 HP 1-Stage HVAC Vacuum Pump and 4 Way AC Manifold Gauge Set with Leak Detector, 5ft Hoses & Accessories for R134a R12 R22 R502 R410a Automotive Air Conditioner Maintenance
$159.99
Free shipping on orders over US$1
Warranty
1 year after-sale serviceFree return within 30 days of delivery
web_product_selling_pints_title
- VIVOHOME Upgraded 4CFM 1/3 HP 1-Stage HVAC Vacuum Pump and 4 Way AC Manifold Gauge Set with Leak Detector, 5ft Hoses & Accessories for R134a R12 R22 R502 R410a Automotive Air Conditioner Maintenance
- PREMIUM VACUUM PUMP: Designed with an integrated one-piece shell, the pump reduces leaks and improves both performance and durability, making maintenance easier; Powered by a four-pole pure copper motor, it offers reliable low-temperature startup and efficient heat dissipation, operating at 1440 RPM for stable, high-performance operation; The single-stage pump design delivers a higher and more stable ultimate vacuum for HVAC, refrigeration, and other high-vacuum tasks
- FUNCTIONAL MAINTENANCE TOOL: Featuring a powerful 1/3 hp vacuum pump, a 4-way manifold gauge, a leak detector, 2 x R134a quick couplers, 2 x R134a can taps (self-sealing type and puncture style), a 330 ml bottle of vacuum oil, and 4 color-coded hoses, the VIVOHOME HVAC vacuum pump kit is perfect for refrigerant evacuation, recharging, and automotive air conditioning repairs
- THOUGHTFUL DETAILS: The VIVOHOME vacuum pump is designed with user comfort in mind, featuring an ergonomic handle and a convenient carrying case for easy transportation; The oil sight glass allows you to monitor oil levels and quality easily; The inner backflow valve provides effective protection against liquid backflow, safeguarding the system; The mesh vent allows for rapid heat dissipation, keeping the pump cool during extended use for optimal performance
- MANIFOLD GAUGE SET: The VIVOHOME manifold pressure gauge provides high-precision readings for accurate system monitoring; The four color-coded hoses—high pressure (red), low pressure (blue), refrigeration (yellow), and vacuum (black)—feature leak-proof seals that can withstand high pressures, working up to 800 psi and bursting at 4000 psi; The hose locking valve provides secondary fastening at connection points to prevent rotation that could cause leaks
- WIDE APPLICABILITY: This AC vacuum pump kit comes with an SAE adapter to enable use with 1/4" and 1/2" hoses; It is also equipped with 2 x R410a fitting adapters (1/4" to 5/16"); The kit is compatible with various refrigerants, including R12, R134a, R22, R502, and R410a, making it ideal for vehicle HVAC systems, refrigeration, mini-split AC, and other repair tasks that require high vacuum performance
Description
Technical Specs
| Duty Cycle | 30-40 mins |
|---|---|
| Motor Speed | 1440 r/min |
| Cord Length | 5ft |
| Air Inlet Ports | 1/4" SAE & 1/2" ACME |
| Package Include | 1 x 1/3 HP 4CFM vacuum pump, 1 x Bottle of Oil;1 x leak detector ;1 x gauge set, 2 x R410A fitting adapters; 2 x Quick Couplers; 2 x R134a can taps; 1 x Storage Bag |
| Pipe Diameter | 1/4" |
| Flow Rate | 4 CFM |
| Gauge Accuracy | ±1.6% |
| Refrigerant Type | R12, R134a, R22, and R410a |
| Vacuum Total Pressure | 150 Microns |
| Ultimate Partial Vacuum | 5 Pa |
| Oil Quantity | 0.35qt./330ml |
| Stage | single-stage |
| Motor Power | 1/3 HP |
